Specifications
- Inverter capacity options: 5kW-12kW (single phase) 5kW-30Kw (3 phase)
- Battery capacity options: 5kWh or 8kWh modules (Note: can be combined in the same stack)
- DC bi-directional EV charger module
- AC EV Charger unit
- Battery type: LiFePO4 (LFP) Scalability: Up to 6 modules per stack
- Voltage Range: 300 - 900 V (for 3-phase systems)
- Protection: IP66 rating (waterproof/dustproof)
- Inverter module dimensions: 36kg, 700 (W) x 300 (H) x 260 D)
- Sigen Battery and Sigen EV DC Charging Module: 700 (W) x 270 (H) x 260 (D)
- Sigen battery 8kWh weight: 70kg
- Sigen battery 5kWh weight: 55kg
- Connect up to 60kW solar PV (3phase SigenStor stack)
- Connect up to 24kW solar PV (1phase SigenStor stack)
- Gateway – Versatile Energy Hub (single and 3 phase). Both whole home & partial backup support
- Backup Power: 0-millisecond changeover time
- Generator to be hardwired into the Gateway
- Intelligent Energy Management System through MySigen monitoring platform

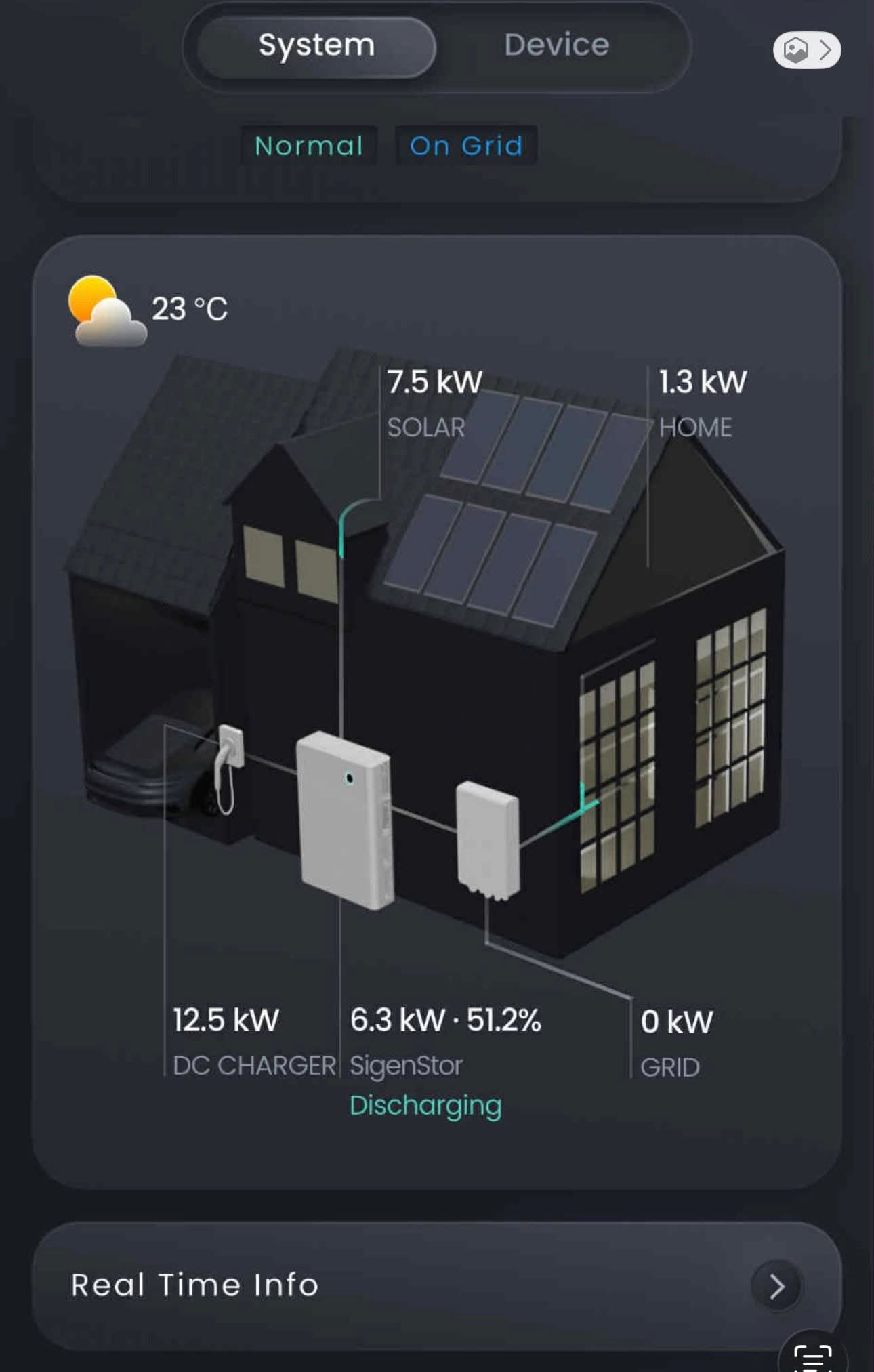

- MySigen monitoring App for your mobile device
SigenStor
Cost: from $15,000
Find out moreSpecifications
- Inverter capacity options: 5kW-12kW (single phase) 5kW-30Kw (3 phase)
- Battery capacity options: 5kWh or 8kWh modules (Note: can be combined in the same stack)
- DC bi-directional EV charger module
- AC EV Charger unit
- Battery type: LiFePO4 (LFP) Scalability: Up to 6 modules per stack
- Voltage Range: 300 - 900 V (for 3-phase systems)
- Protection: IP66 rating (waterproof/dustproof)
- Inverter module dimensions: 36kg, 700 (W) x 300 (H) x 260 D)
- Sigen Battery and Sigen EV DC Charging Module: 700 (W) x 270 (H) x 260 (D)
- Sigen battery 8kWh weight: 70kg
- Sigen battery 5kWh weight: 55kg
- Connect up to 60kW solar PV (3phase SigenStor stack)
- Connect up to 24kW solar PV (1phase SigenStor stack)
- Gateway – Versatile Energy Hub (single and 3 phase). Both whole home & partial backup support
- Backup Power: 0-millisecond changeover time
- Generator to be hardwired into the Gateway
- Intelligent Energy Management System through MySigen monitoring platform
- MySigen monitoring App for your mobile device
Description
The 5-in-1 Home Energy Solution
SigenStor is a world leading global brand offering a cost-effective, all-in-one solar and battery solution, now backed with strong support in Australia. Its 5-in-One Home ESS integrates a solar inverter, EV DC charger, battery PCS, battery pack, and EMS into one seamless system.
- Affordable thanks to efficient manufacturing
- Smart and versatile for all energy needs

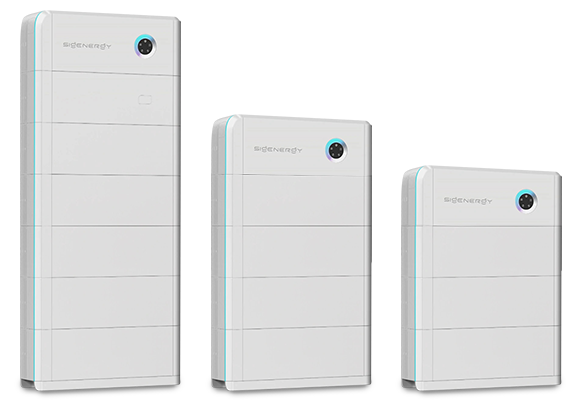

- Unlimited, easy and fast upgradeability through module components (like LEGO)
- Small footprint 700mm wide x 260mm deep
- Sleek design with ambient lighting to suit any home
- Available in 3-phase for larger energy demands
- SigenStor delivers cutting-edge performance with elegant simplicity—ideal for modern, energy-conscious homes.
- The safest form of lithium battery storage for your home or business with SigenStor’s 5-layer protection
- 10 years system warranty
Note: Prices do vary depending on panel, inverter & battery configuration and whether installation is included or not.
For specifications on solar panels – please contact us.
