Specifications
- 5.12 - 15.36kWh BSL Lithium Battery Bank
- 5kW or 8kW Deye Inverter
- Panel options: 8-24 panel configuration
- 230 AC outlet
- 2-3x MPPT depending on the inverter
- Weight: 150kg + 45kg per battery
- Generator to be hardwired with auto start
- Cabinet Dimensions: 1634H x 600W x 600D
- IP54 rating enclosure
- Monitoring software included with 4G sim + remote monitoring from you mobile device

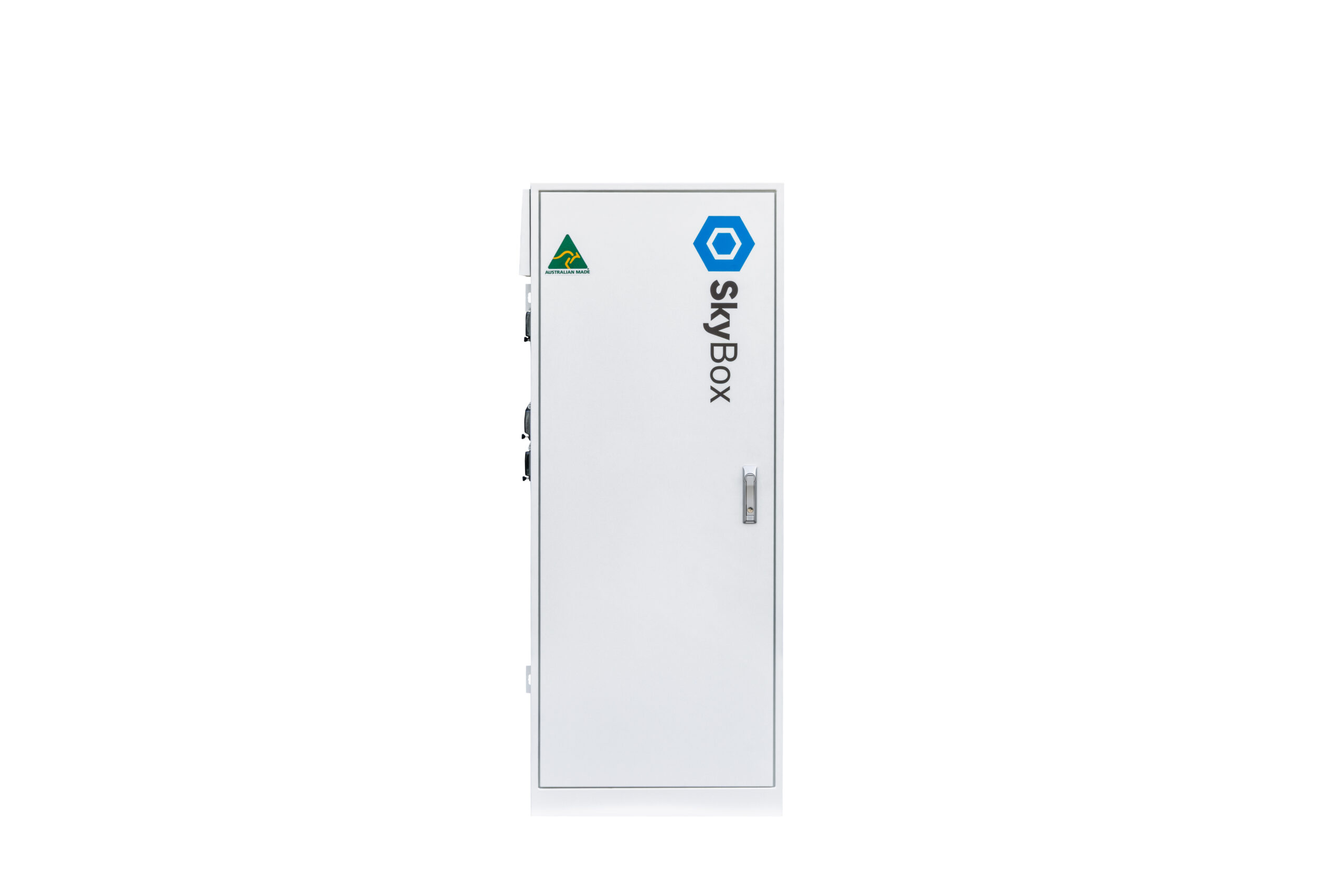

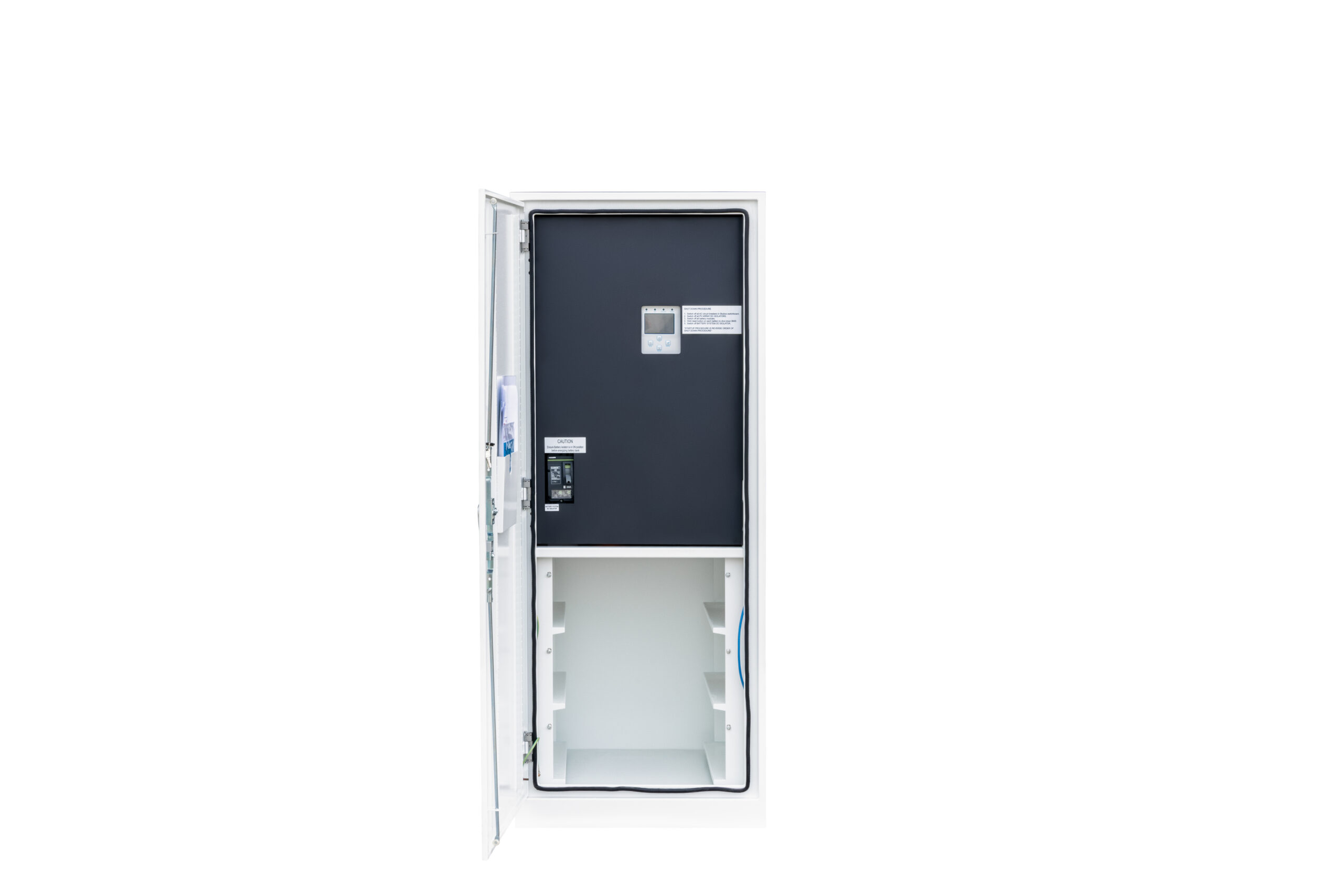

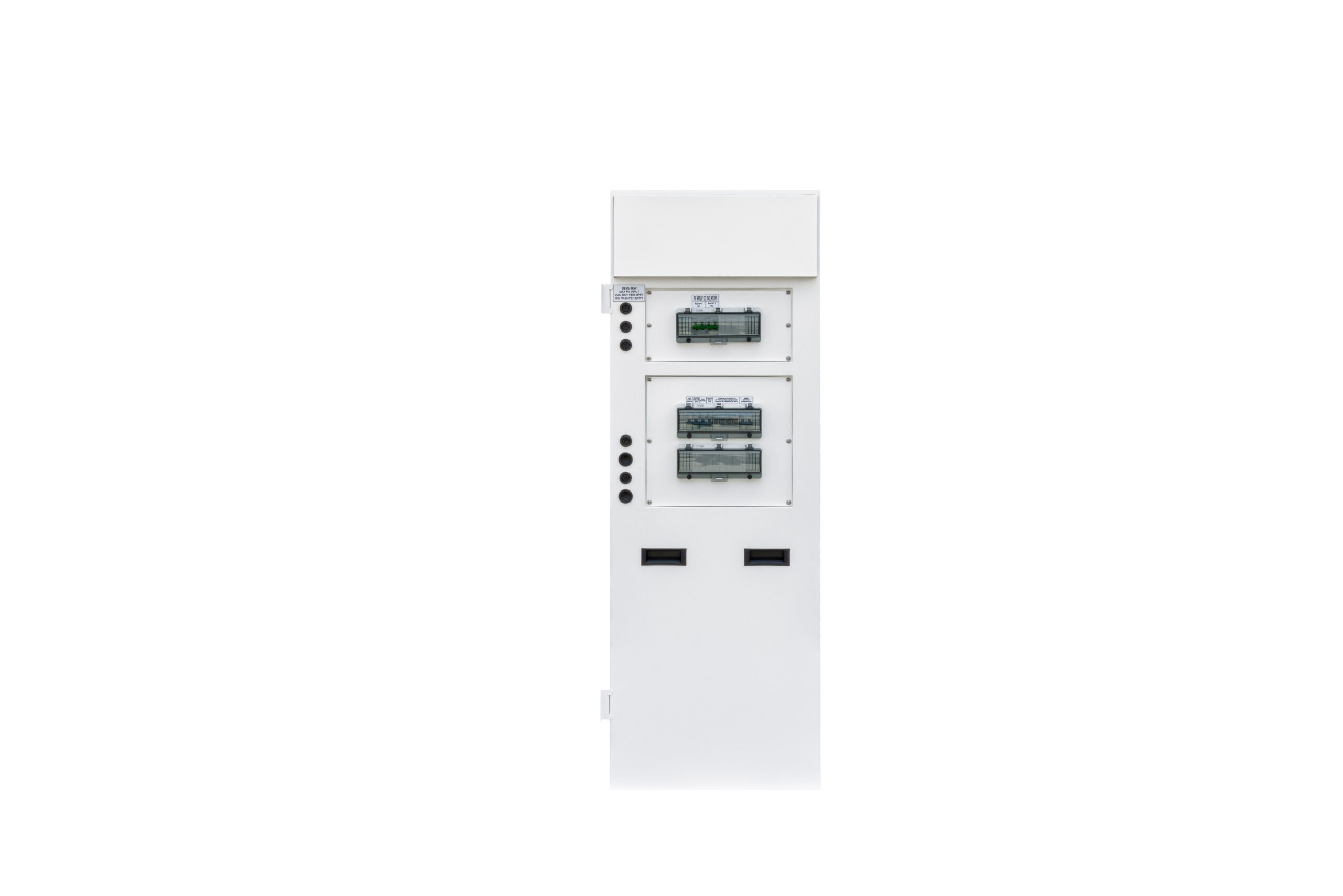

SkyBox Mini OffGrid Power Kit
Cost: from $11,000 - $21,000
Find out moreSpecifications
- 5.12 - 15.36kWh BSL Lithium Battery Bank
- 5kW or 8kW Deye Inverter
- Panel options: 8-24 panel configuration
- 230 AC outlet
- 2-3x MPPT depending on the inverter
- Weight: 150kg + 45kg per battery
- Generator to be hardwired with auto start
- Cabinet Dimensions: 1634H x 600W x 600D
- IP54 rating enclosure
- Monitoring software included with 4G sim + remote monitoring from you mobile device
Description
Create your own power grid
SkyBox gives everyone freedom and independence from the power grid.
Whether you live in a rural location without reliable grid power access, or simply want a more sustainable lifestyle, the SkyBox Mini Off Grid Solar Kit system provides the perfect power solution. This system is the perfect solution for sheds, weekenders, tiny homes, granny flats, cabins etc. It is IP56 rating, meaning it can be installed outside, in a dry position, in the shade. The systems are pre-built, tested, packaged, and shipped to you – ready for you and your local electrician to install.
The SkyBox Mini is designed for applications with a daily power usage from 3kWh up to 15kWh plus during daytime the excess generated energy from the chosen solar PV array. Sky Energy has done all the running around for you. All the hardware, cabling and electronics are all included saving you precious time. The SkyBox Mini should be installed by a licensed electrician.
Already have solar panels? You can purchase the SkyBox Mini unit only with its selection of either a 5kW, 8kW or a 10kW single phase inverter. A 3phase 10kW inverter is also available. Battery bank from 1-3 BSL lithium batteries (5.12 – 15.36kWh).
No solar panels? Purchase the SkyBox Mini’s complete power kit – which includes solar panels and the rail mounting kit for a metal roof.
For specifications on solar panels – please contact us
Acting as a central ‘brain,’ the SkyBox Mini manages incoming power from your solar, balancing these power sources and storing excess energy in the internal batteries, SkyBox Mini creates a reliable off-grid electricity supply.
No solar panels? Purchase the complete SkyBox Mini Kit – which includes solar panels and the rail mounting kit for a metal roof.
